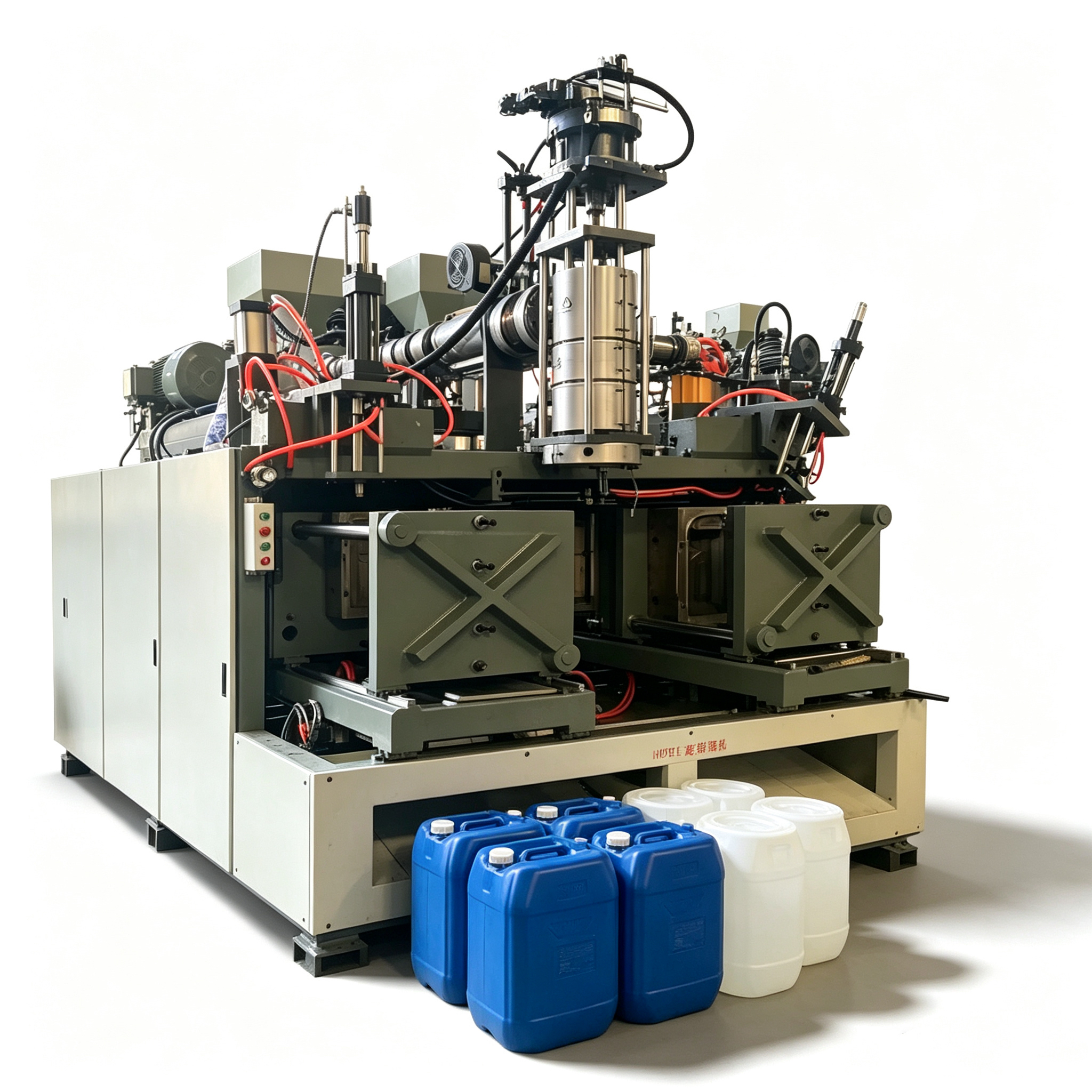

90 screw semi-automatic fully hydraulic dual-station single-chamber blow molding machine, can produce plastic barrels up to 20 liters
| Quantity: | |
|---|---|
-
90 screw, 2 stations, 1 cavity
-
Buck machine
Machine Introduction
Semi-automatic double-station single-cavity blow molding machine
This 90 screw semi-automatic fully hydraulic dual-station single-cavity blow molding machine is specially designed for manufacturing HDPE plastic barrels with maximum capacity of 20 liters.
Adopting full hydraulic drive system, the equipment runs smoothly with stable clamping force and low failure rate. Dual-station design greatly improves production efficiency, one station completes blowing while another station finishes product unloading, saving cycle time. The 90mm screw plasticizing unit ensures uniform raw material melting, consistent wall thickness of finished barrels.
It can produce various plastic containers, including chemical barrels, water storage barrels, liquid packaging barrels, pesticide bottles and daily-use plastic pails. Suitable for HDPE raw materials, widely used in chemical industry, daily packaging, food and agrochemical packaging fields.
The machine features simple operation, easy mold replacement and convenient maintenance. Custom molds are available to make different shapes of plastic barrels according to customer requirements.
Technical parameters
| 螺杆 screw | 90MM |
| 最大容量 Max. product volume | 20L |
外形尺寸 size | 4200*1900*2450MM |
机器重量 weight | 8T |
塑化能力 Plasticizing ability | 150Kg/H |
加热功率 Heating power | 13.2KW/H |
挤料电机 Extrusion motor | 30KW |
油泵电机 Oil pump motor | 15KW |
减速器 reducer | 225 Hardened tooth surface, high strength,low noise and anti-wear reducer |
模板尺寸 Template size | 450*450MM |
锁模力Clamping force | 200KN |
| 中心距 center distance | 0 |
Machine Picture
Electric box

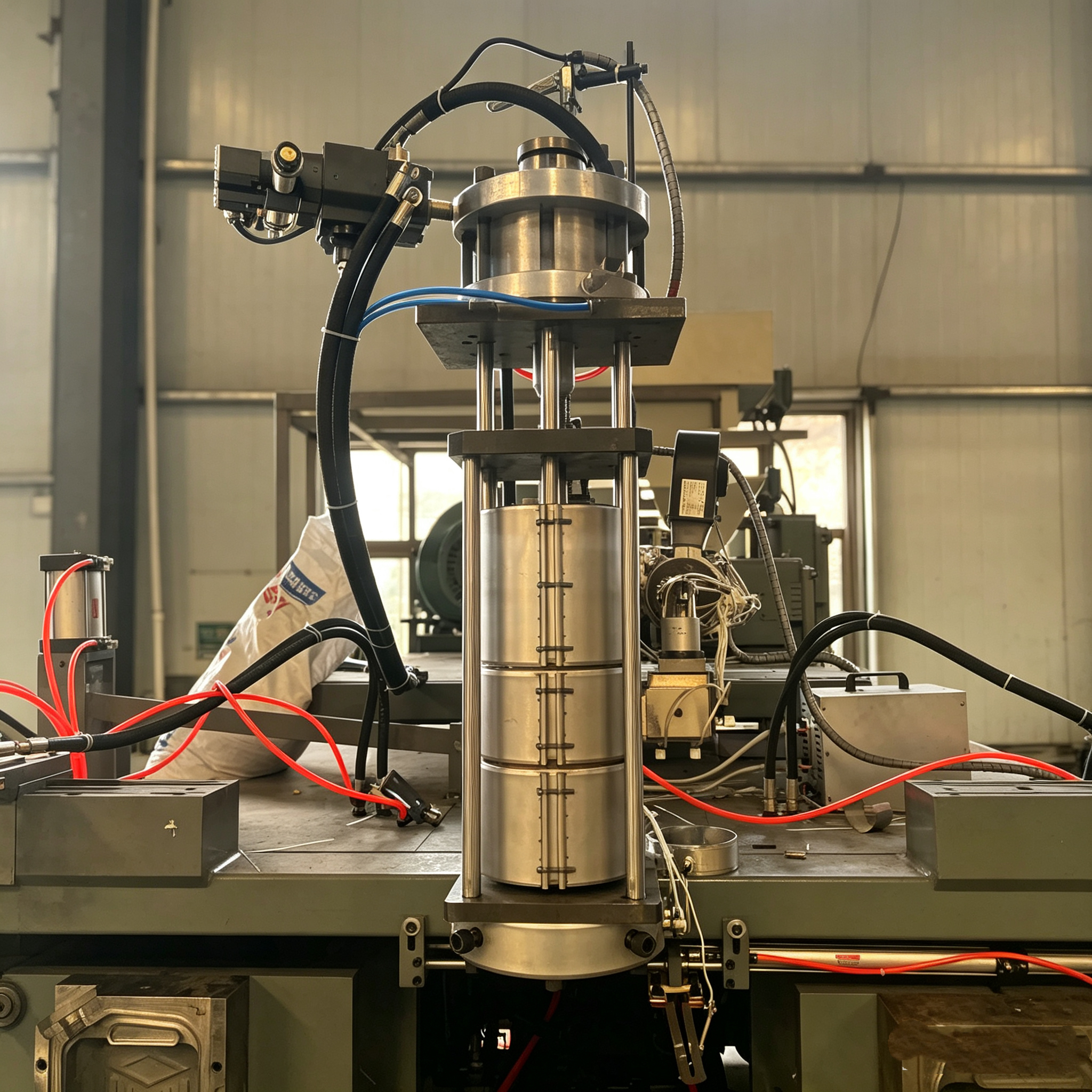

Screw heating，
nitriding steel 38CrMoAlA
5 Cast aluminum heating coil
Mitsubishi PLC Touchscreen + Wall Thickness Controller
Temperature controller
Key Features
1. Fully hydraulic drive system, stable clamping force, smooth running, less vibration, uniform barrel wall thickness.
2. 90mm large screw ensures fast plasticization, even material melting, and high-quality HDPE barrel performance.
3. Dual-station structure greatly improves output, high efficiency for mass production.
4. Single-cavity precision molding, specially designed for 5L–20L large plastic barrels, full forming without deformation.
5. Semi-automatic control, easy operation, save labor cost, friendly for new workers.
6. Wide production range, can make all kinds of HDPE buckets, chemical barrels, water tanks and packaging containers.
7. Quick mold change support, customized barrel shapes and sizes available.
8. Heavy-duty machine body, durable, low failure rate, suitable for long-time factory production.
Applications
Applications:
This 90 screw hydraulic blow molding machine is mainly used for producing 5L-20L HDPE plastic barrels and hollow containers, widely applied in multiple industries:
1. Chemical Industry
Produce chemical barrels, detergent barrels, paint barrels, ink containers, and industrial liquid packaging buckets.
2. Agricultural & Pesticide Industry
Manufacture pesticide barrels, fertilizer barrels, agricultural water storage buckets and farm chemical packaging containers.
3. Daily Chemical & Water Treatment Industry
Suitable for domestic water storage barrels, purification buckets and daily cleaning liquid packaging containers.
4. Automobile & Machinery Industry
Produce antifreeze barrels, windshield washer fluid barrels, engine oil barrels and lubricant packaging buckets.
5. Food Packaging Industry
Produce food-grade water storage barrels and food liquid plastic containers.
6. Custom Export Packaging
Support customized open-top & closed-top plastic barrels for overseas export orders, suitable for foreign trade manufacturers.
